Переключатель универсальный (12 Position Trim Pot)

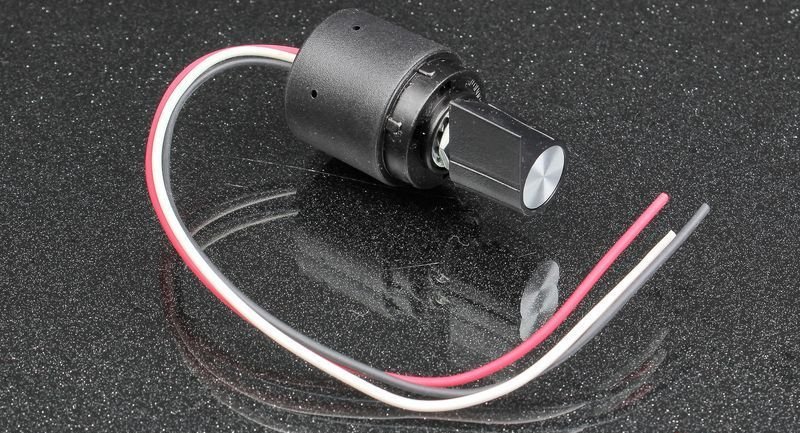

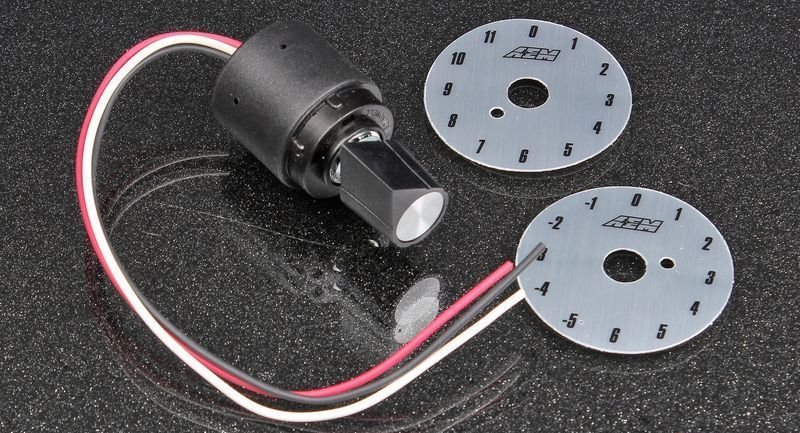

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11

Can be used with virtually any engine management system
Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals

AEM trim pot specifications:

* Сопротивление: 14.3KOм
* Кол-во циклов: 10 000
* Кол-во позиций: 12
* Угол вращения: 330 градусов
* Монтаж: 3/8" отверстие
* Прижимная гайка: 1/2"
* Напряжение: 5V DC

Подключение: Красный (5V DC +/- .5), Чёрный (Ground), Белый (Output)
