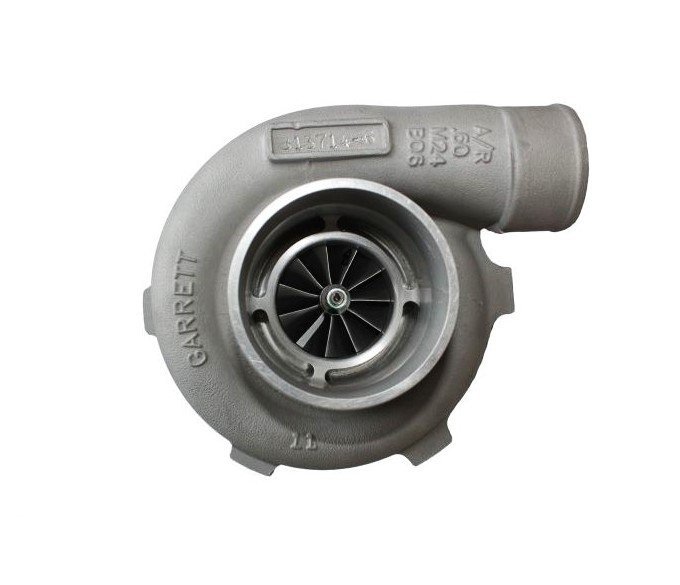

Турбина Garrett GTX2867R 275-480HP без горячего хаузинга

MODEL GTX2867R Garrett Turbo Part 836040-5004S Garrett CHRA Part 836012-5004S A/R   TURBINE SIDE   O.D. mm 53.8 I.D. mm 47.0 TRIM 76 COMPRESSOR SIDE   O.D. mm 67.4 I.D. mm 49.7 TRIM 55

Ball bearing oil & water cooled CHRA.Ported compressor shroud to increase surge resistance. Interchangeable with GT2860RS. Sold without turbine housing. Available internally wasteaged.

Options Housing

Part Number	Size	Material	A/R	TRIM	Inlet	Outlet
740902-0552	GT28	SS	0.52	76	V-Clamp	V-Clamp
827690-0001	GT28	Ni-Resist	0.57	76	V-Clamp	V-Clamp
740905-0563	GT28	SS	0.63	76	WG/V-Clamp	WC/V-Clamp
430609-0230	GT28	Ni-Sil	0.64	76	WG/T25	5-bolts
430609-0297	GT28	Ni-Resist	0.64	76	WG/T25	5-bolts
740902-0564	GT28	SS	0.64	76	V-Clamp	V-Clamp
430609-0406	GT28	Ni-Resist	0.64	76	WG/T25	5-bolts
827690-0002	GT28	Ni-Resist	0.72	76	V-Clamp	V-Clamp
430609-0231	GT28	Ni-Sil	0.86	76	WG/T25	5-bolts
740902-0586	GT28	SS	0.86	76	V-Clamp	V-Clamp



This GTX model as uses all the same oil and coolant fittings at the standard GT28/GT30R/GT35R turbo.

Альтернативные номера

Для GTX2867R использует все те же масла и охлаждающие жидкости, что и на стандартной GT28 / GT30R /GT35R турбинах
