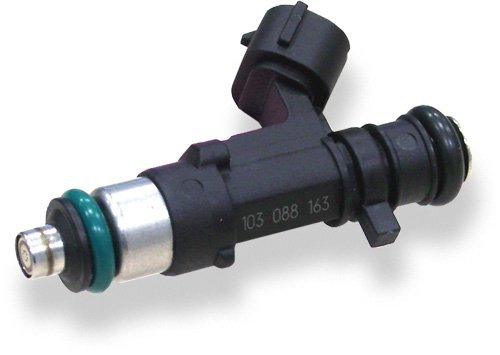

Топливная форсунка Bosch 450cc

высокоомная инжекторная форсунка с верхней загрузкой

Technical Specifications

Mechanical Data

System pressure Max. 8 bar

Weight ≤ 30 g

Installation lengths 33.6, 48.65 or 60.65 mm

Fuel input Top-feed injector Operating temperature -40 to 110°C

Permissible fuel temperatures ≤ 70°C

Climate-proof corresponding to saline fog test DIN 50 021

Housing design Compact (C), Standard (S), Long (L) Spray type C (Conical Spray) or E (2-Spray)

Flow rate at 3 bar (n-heptane) 146 to 1,462 cm³/min 116 to 1,000 g/min
